| Material | Aluminum （Surface Treatment Alumite treatment） |
|---|---|
| Operating temperature | -30℃～100℃ |
Features
- Fitting to a wiring bracket improves shock resistance.
- Allows for upward and downward installation.
- The hungers can be fit even after wiring work is done.
- Wiring work can be done even after the hungers are fit.
Application

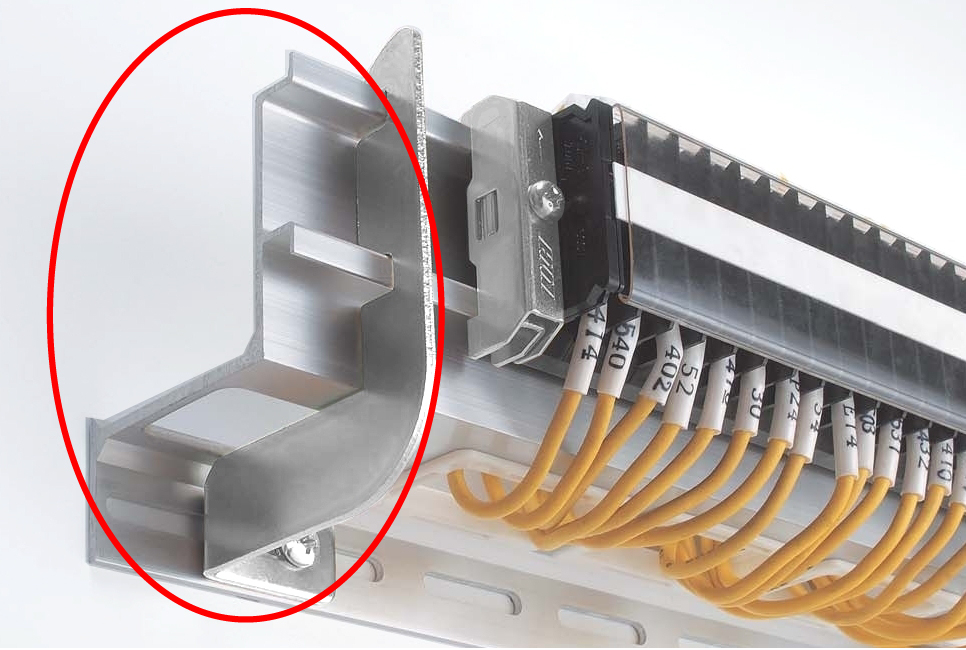

Designed to support a wiring bracket
Surface Treatment
Trivalent chromate treatment
Quantity
50 sets (1 set: one piece for right and left each)
Type List(KWB-H)

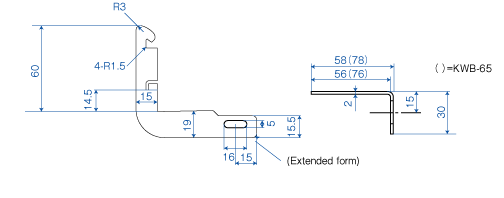

Cross Section

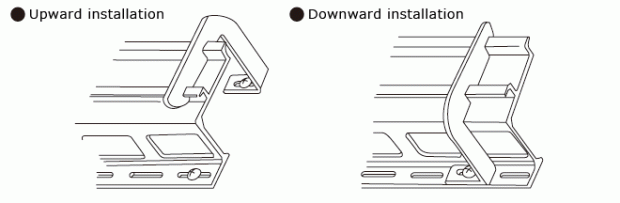

How to Use
Notes for Use
- Downward installation may loosen the mounting screws due to vibrations from transportation etc. To prevent this, use spring washers etc.
- Do not use the product for applications other than the above.
